Highlights
- Large 13" round heating element and the most powerful (5,500 W) in its class
- Industry exclusive triple zone element allows you to match element size to various sized cookware
- PowerBoost feature increases element power by up to 50%, saving time to heat up pots or cook large quantities
- Illuminated touch controls with 17 power settings is highly precise and allows for easy cleaning
Performance
- 5 induction cooking elements
- 17 power levels
- Powerful 5,500 W, 13" triple element for larger pots and pans
- PowerBoost setting
- Automatic pan recognition
- Child safety lock
- 2 stage residual heat indicators
Design

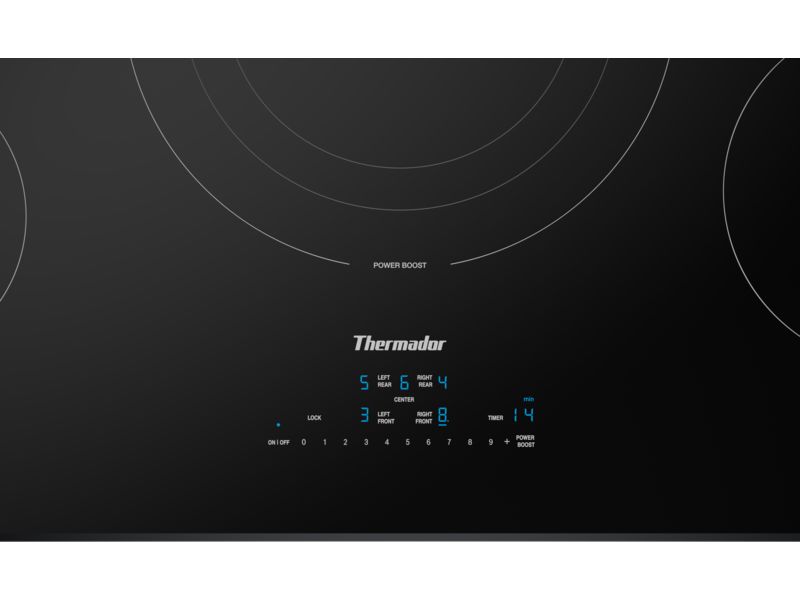

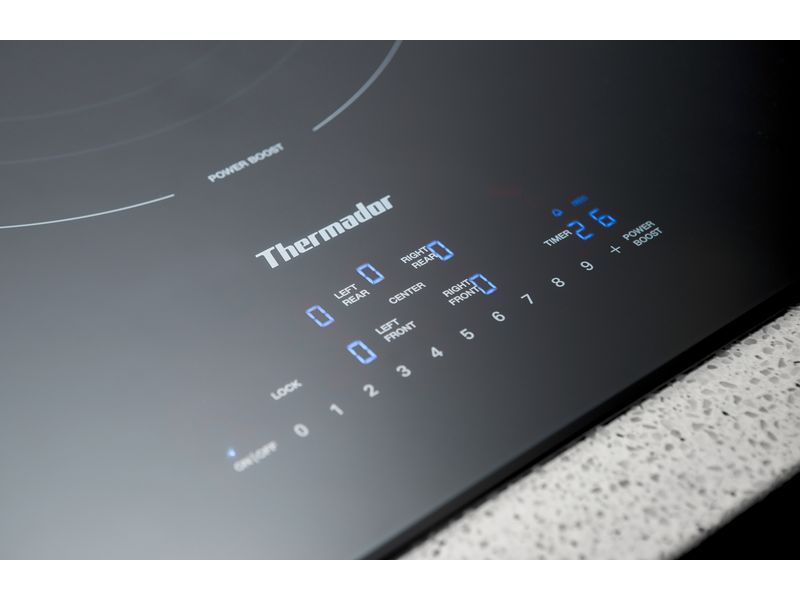

- Illuminated touch controls
- Frameless design
| Construction type | |
|---|---|
| Number of electric cooking zones | 5 |
| Type of frame | 4 Facettes |
| Number of Burner | 5 |
| Installation Type | Built-in |
| Size and Weight | |
| Dimensions | 98 x 940 x 540 mm |
| Minimum height for installation | 505 mm |
| Maximum height for installation | 508 mm |
| Minimum width for installation | 883 mm |
| Maximum width for installation | 886 mm |
| Depth for installation | 98 mm |
| Appliance height above the worktop | 10.0 mm |
| Cooking zone 1 | |
| Dimension of heating element | 180 mm |
| Location of 1st heating element | front left |
| Power of heating element (W) | 1.8 kW |
| Type of heating element | Induction heating |
| Energy consumption of heating element | 175.0 Wh/kg |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Dimension of 3rd heating element | 180 mm |
| Location of 3rd heating element | back left |
| Power of 3rd heating element (W) | 1.8 kW |
| Type of 3rd heating element | Induction heating |
| Energy consumption of 3rd heating element | 175.0 Wh/kg |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Dimension of 5th heating element | 145 mm |
| Power of 5th heating element (W) | 1.4 kW |
| Location of 5th heating element | back right |
| Type of 5th heating element | Induction heating |
| Energy consumption of 5th heating element | 175.0 Wh/kg |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Dimension of 7th heating element | 210 mm |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 2.2 kW |
| Type of 7th heating element | Induction heating |
| Energy consumption of 7th heating element | 175.0 Wh/kg |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Dimension of 9th heating element | 210 ; 260 ; 320 mm |
| Location of 9th heating element | front centre/cent |
| Power of 9th heating element (kW) | 2.2 ; 2.6 ; 3.3 kW |
| Type of 9th heating element | Induction heating |
| Energy consumption of 9th heating element | 175.0 Wh/kg |
| Safety | |
| Residual heat indicator | Separate |
| Connection | |
| Power cord length | 96 cm |
| Safety | |
| Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
| Connection | |
| Heating Technology | Electric |
| Frequency | 60 Hz |
| Construction type | |
| Number of electric warming zones | 0 |
| Number of electric elements | 0 |
| Number of gas burners | 0 |
| Number of halogen elements | 0 |
| Number of radiant elements | 0 |
| Installation type | Built-in |
| Color of surface | Black |
| General | |
| Energy consumption of hob | 175.0 Wh/kg |
| Colour | Black |
| Frame type | Facet |
| Basic surface material | Ceramic |
| Power of the heating elements | 1 x 1.4 (2.2) kW, 1 x 2.2 (3.6) kW, 1 x 3.3 (4.4) kW, 2 x 1.8 (3.1) kW |
| Dimensions of the heating elements | 1 x 14,5 cm Ø, 1 x 21,0 cm Ø, 1 x 32,0 cm Ø, 2 x 18,0 cm Ø |
| Number of Burner | 5 |
| Type of appliance width | 90 cm |
| Self-sufficient cooker control | Self-sufficient induction hobs |
| Cooktop type | Induction cooktop |
| Technical Overview | |
| Heating Technology | Electric |
| Number of electric cooking zones | 5 |
| Width of the product | 940 mm |
| Control Type | Electronic |
| Watts | 9,360 W |
