Features

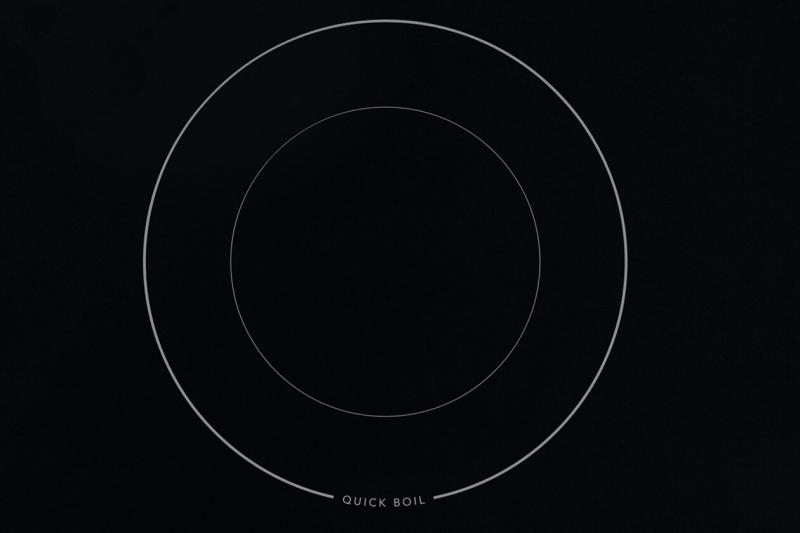

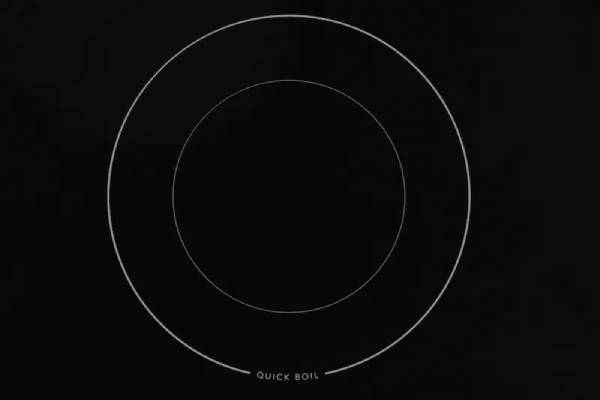

Quick Boil Element
Get meals on the table faster with our powerful 3,000W Quick Boil element.
SpaceWise Expandable Element
Flexible element expands to accommodate various sizes of cookware.
Frigidaire Fit Promise
We promise that your new 30" or 36"Frigidaire brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for modification costs up to $100.

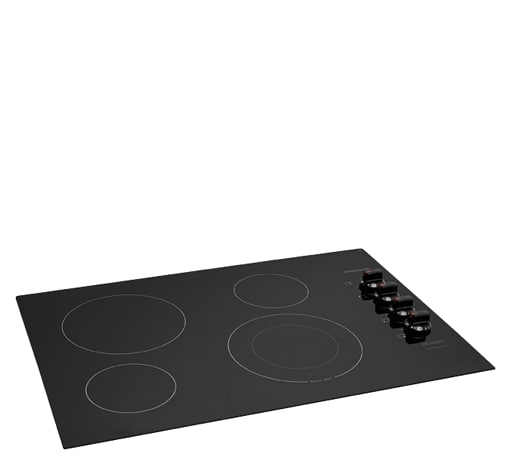

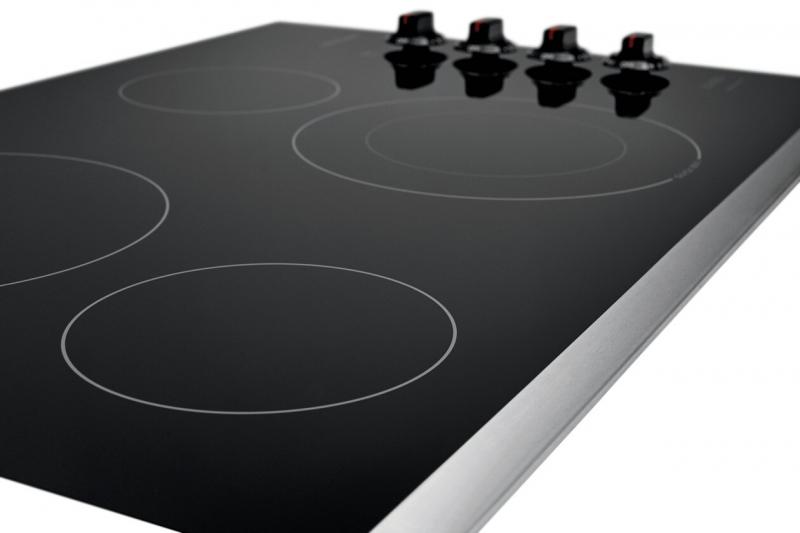

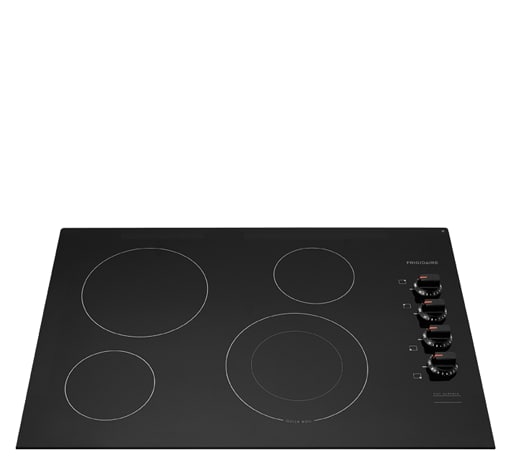

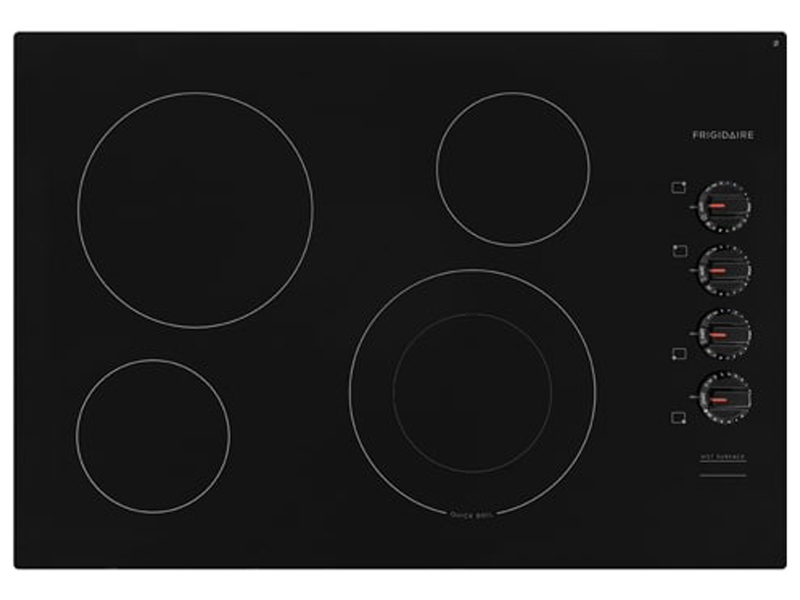

Ceramic Glass Cooktop
For a more beautiful cooktop that's easy to clean.

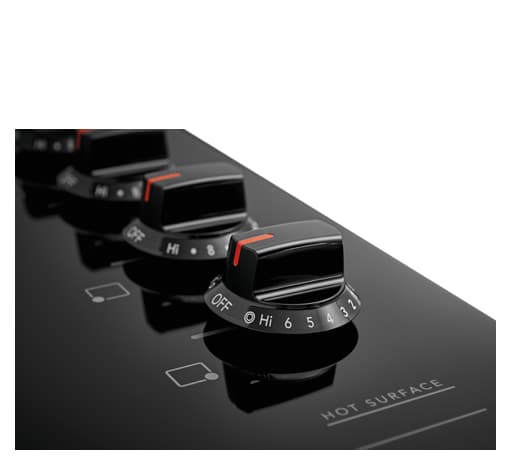

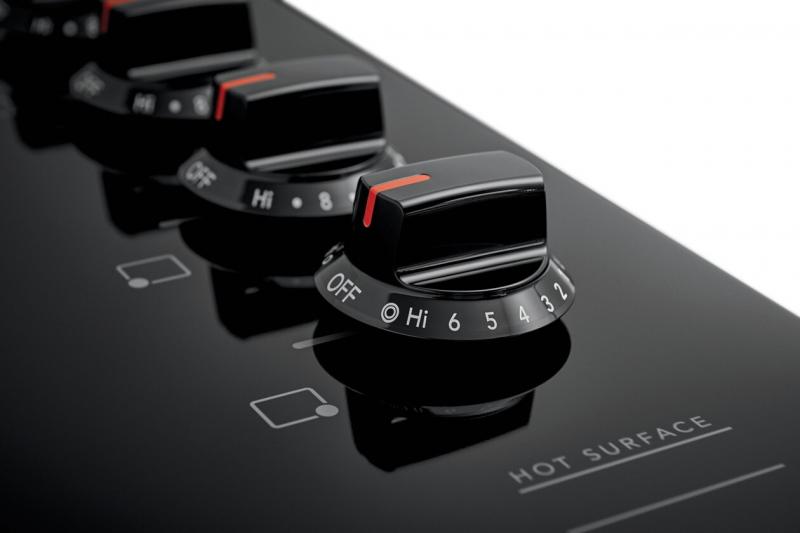

Ready-Select Controls
Easily control your cooking temperature with our easy-to-use controls.
Hot Surface Indicator
Alerts you when your cooktop may be too warm to touch.

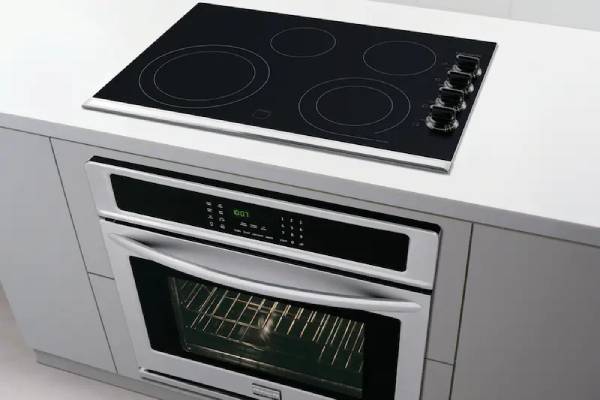

Approved Over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our single electric wall ovens.
| Safety Certifications & Approvals | |
|---|---|
| CSA Listed | Yes |
| UL Listed | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Connected Load @ 240V | 7.9 kW |
| Amps @ 240 Volts | 32.9 Amps |
| CONTROLS | |
| Control Location | Right |
| Sabbath Mode | No |
| Dimensions and Volume | |
| Height | 2 5/8 |
| Width | 30 5/8 |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Dimensions and Volume | |
| Depth | 21 3/8 |
| Installation | |
| Power Supply Connection Location | Right Center |
| COOKTOP | |
| Surface | Smooth |
| Right Rear Element Burner Size | 6 |
| Hot-Surface Indicator Light | Yes |
| Left Front Element Burner Size | 6 |
| Left Rear Element Burner Size | 6 |
| Right Front Element Burner Size (Large) | 9 |
| Right Front Element Burner Size (Small) | 6 |
| Right Front Element Burner (Small) | 1,600 Watts |
| Right Front Element Burner (Large) | 3,000 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Left Front Element Burner | 1,200 Watts |
| Left Rear Element Burner | 2,500 Watts |
| Exterior | |
| Knob Color | Black |
| Knob Material | Plastic |
| Installation | |
| Frigidaire Fit Promise | Yes |
| Prop 65 Label | No |
| Product Weight | 29.45 lbs |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications & Approvals | |
| ETL Listed | No |
| ADA Compliant | No |
