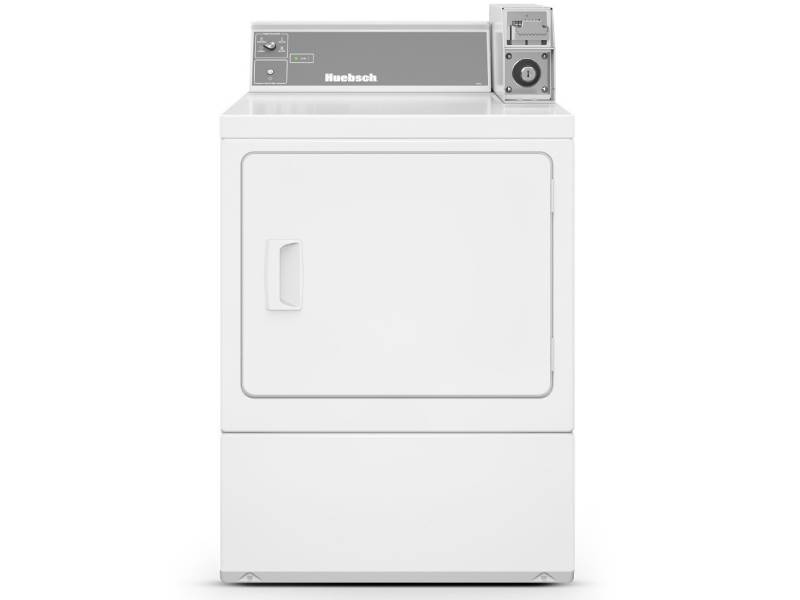

Huebsch Commercial Coin Slide Commercial Rear Control Single Dryer - HDESXRGS173CW01
$2,070.00 CAD
Literature
You may also like
Built for Reliable Performance
Huebsch®’s coin slide single load dryer combines heavy-duty construction with reliable operation proven to stand the test of time. They’re designed with less moving parts for one reason: so you’ll face fewer maintenance problems and less wear and tear down the road. Our cabinet design maintains the perfect balance of heat, airflow and tumble action for optimal performance and efficiency. The equipment provides an advantage on such issues as energy conservation, equipment breakdowns and vandalism.
- Industry’s largest door opening 2.06 sq. ft. (1914 cm2)
- Door is reversible for installation flexibility
- High efficiency exhaust blower with superior airflow
- 220 cfm (105 liters/sec)
- 100% serviceable from the front
- Space-saving narrow cabinet 26.875” (683 mm)
- Upfront lint filter easy to clean and secured
- Durable galvanized steel cylinder
Coin Slide control offers heavy-duty operation, is easy to use and offers the basic features needed for optimal coin-vended laundry room operations.
| Specification | |
|---|---|
| MOTOR (THERMAL PROTECTED) | 0.33 HP |
| AIR OUTLET DIAMETER - in (mm) | 4 (102) |
| TYPE OF GAS (GAS MODELS ONLY) | Factory equipped natural |
| CYLINDER VOLUME - cu. ft. (liters) | 7.0 (198) |
| COLOR | White |
| CAPACITY - lb (kg) 1 | 8 (8.2) |
| CONTROL OPTION | Coin Slide |
| EXHAUST AIRFLOW - cfm (liters/sec) | 220 (105) |
| CYCLE SELECTIONS | Normal, Perm Press Delicate, No Heat |
| Electrical Requirements | |
| Electric | 120/240/60/1-30 amp 120/208/60/1-30 amp |
| HEATING ELEMENT | |
| Electric | 5000W, 240V 4250W, 208V |
| Specification | |
| NET WEIGHT - lb (kg) | Electric 150 (68) |
| SHIPPING WEIGHT - lb (kg) | |
| Electric | 161 (73) |
| Specification | |
| SHIPPING DIMENSIONS APPROX. - in (mm) |
Width 30.5 (775) Depth 29.5 (7623) Height 45 (1143) |
| AGENCY APPROVALS | Electric cULus |
