Features
Three Speed Ventilation Fan
Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 340 cubic feet per minute (CFM).
Quiter Operation
When using the fans to circulate air, the sound level is equivalent to 52.6 dBA similar to a quiet conversation, or background music.
LED Lighting
Get a clearer view of your cooktop with two LED lights that illuminate the cooking surface.
Charcoal Filter
Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Dishwasher Safe Grease Filter
Easy to remove, dishwasher safe aluminum mesh filters help trap particles and helps reduce odors.

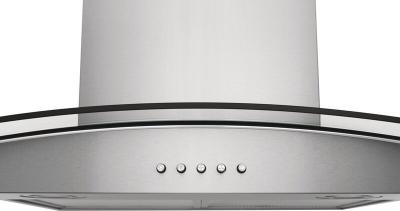

Push Button Controls
Easily select fan speed or lighting level with simple push button controls.
Chimney Extension Available
For kitchens that require more height, you can purchase an additional chimney extension that accommodates ceiling heights of 10 feet. (Part Number FHW10X70LS)
| VENTILATION SYSTEM | |
|---|---|
| Ducted Vent | Yes - Out of the Box |
| Exhaust Fan Speeds | 3 |
| Maximum Air Flow Capacity | 340 CFM |
| Minimum Air Flow Capacity | 220 CFM |
| Maximum Sones Rating | 5.5 sone |
| Minimum Sones Rating | 2.5 sone |
| Grease Filter Included | Yes |
| Grease Filter Quantity | 2 |
| Grease Filter Type | Aluminum Mesh |
| Grease Filter Dishwasher Safe | Yes |
| Charcoal Filter Included | Yes |
| Charcoal Filter Quantity | 2 |
| CONTROLS | |
| Control Type | Push Button |
| Filter Change Indicator | No |
| Surface Light System | |
| Lighting Type | LED |
| Number of Lights | 2 |
| Number of Light Settings | 2 |
| Dimensions and Volume | |
| Height | 24" |
| Height With Flue Extension | 45" |
| Width | 29 13/16" |
| Depth | 18 15/16" |
| Duct Diameter | 6" |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 120 V |
| Installation | |
| Duct Exit Location | Top |
| Hardwired | Yes |
| Power Supply Connection Type | Hard Wired |
| General Specifications | |
| Product Weight | 45.03 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications and Approvals | |
| ETL Listed | Yes |
| HVI Listed | Yes |
