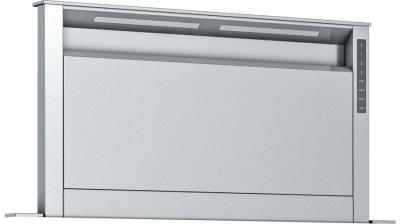

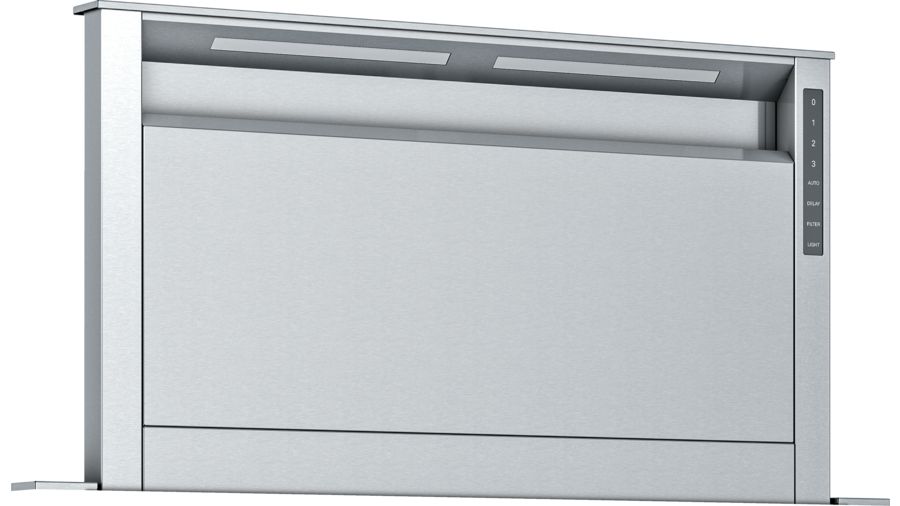

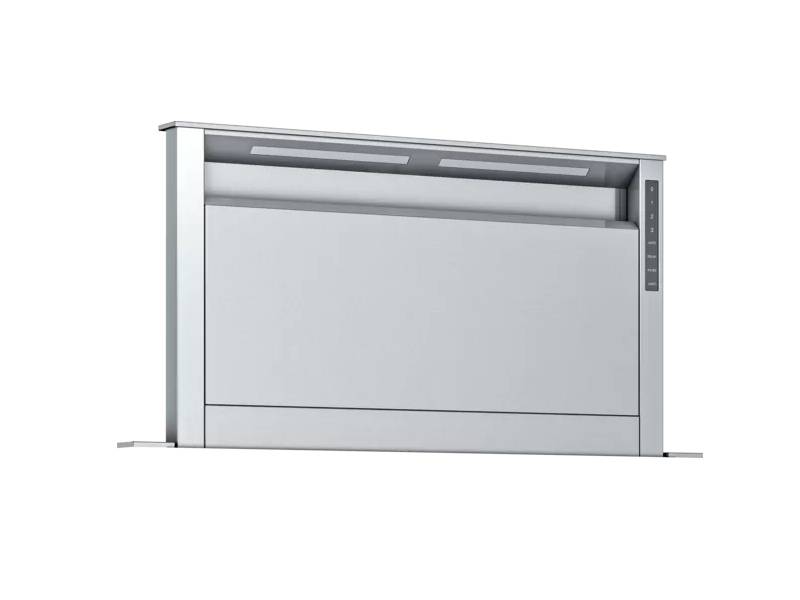

36" Thermador Masterpiece Series Downdraft Ventilation in Stainless Steel - UCVP36XS

Category : Ventilation
SKU : UCVP36XS

$4,479.00 CAD

Literature

These subtle units retract out of sight when not in use, keeping sightlines clear. At a push of a button, downdraft rises 18" tall

  • Three fan speeds plus 10 minute high-power operation mode
  • Dishwasher safe hybrid mesh filters
  • Flexible discharge design gives 5 configurations to maximize space
  • Remote or inline blowers to reduce noise, integral for top performance
  • Auto function senses heat from the cooking surface and adjusts the fan speeds

Technical Specifications

  • 36" Downdraft - Masterpiece Series

Performance

  • Designed to create the ultimate cooking system with Thermador cooktops
  • Downdraft rises 18" to capture heat, grease and steam from pots
  • Powerfully Quiet and efficient in operation at 1.2 sones on low speed
  • Sleek, removeable front filter panel that acts as a splatter shield
  • Grease mesh filters are dishwasher safe and easy to clean
  • Select the precise fan speed needed with four different settings
  • Automatic mode detects temperatures to adjust fan speed automatically
  • 10-min delay shut-off ensure lingering odors are whisked away
  • Check filter reminder light illuminates after 40 hours of operation
  • Recirculation kit available, use with induction/electric cooktops only

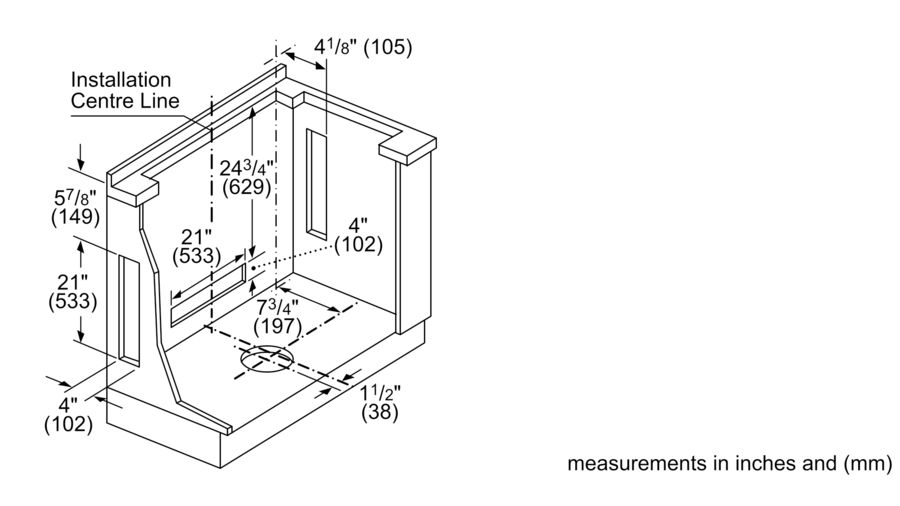

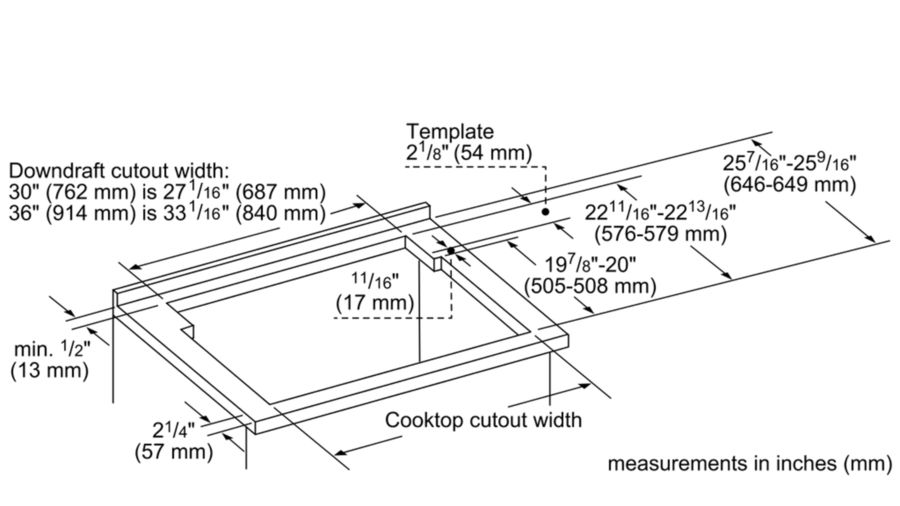

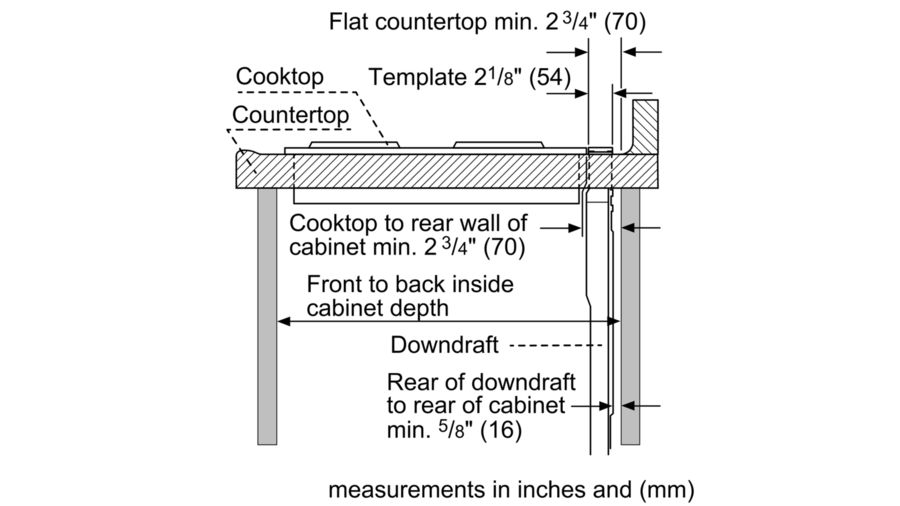

  • Some blower positions may need deeper cabinets. See installation guide
  • Blowers sold separately and required to complete installation
  • Replacement charcoal filters for recirculation kit sold separately
  • Gas cooktop seal kit required to use with gas cooktops, sold separate
  • Additional accessories may be required for installation, see manual

Design

  • Design match to Thermador Masterpiece Series cooktops
  • Suitable for wall or island applications
  • Designed to allow for flexibility to exhaust at sides, front or rear
  • Authentic, brushed stainless steel finish
  • Sleek, smooth touch control make cleaning easy with a damp cloth
Connection
Volts (V)120 V
Frequency (Hz)60 Hz
Power cord length (cm)150 cm
Construction type
Air circulationConvertible
Number of Motors0
Motor locationExternal motor
Installation TypeBuilt-in
MaterialStainless steel
Grease filter typeMultilayer cassette
Grease filter materialWashable aluminium
ColourStainless steel
General
Control TypeRotary switches
Air circulationConvertible
Installation TypeBuilt-in

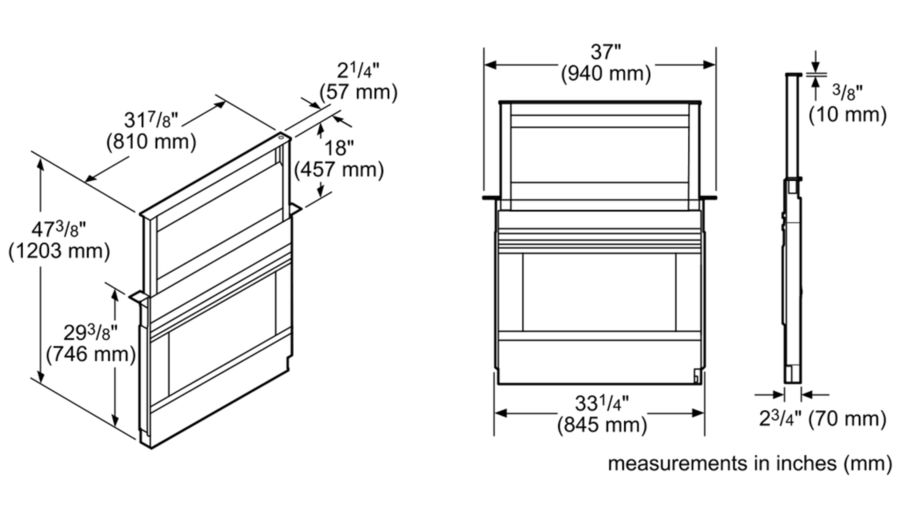

Depth of the product70 mm
