Features

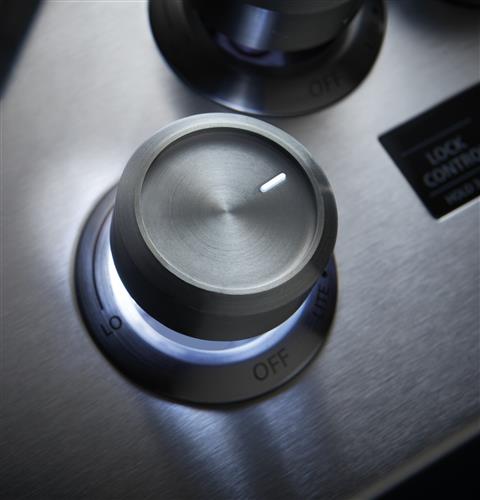

Precision knobs
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs

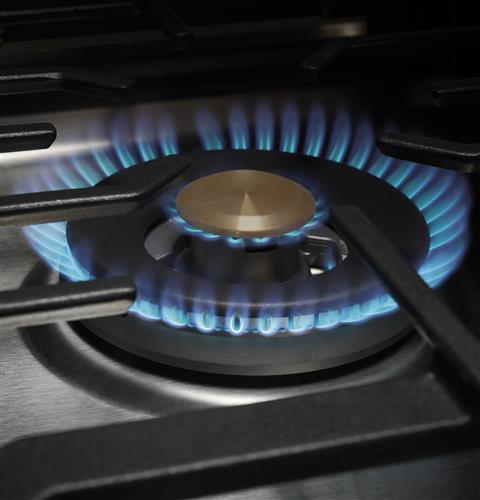

Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sauting
Continuous grates
Designed for even cooking and simple movement of cookware across the surface
Electronic ignition
Ensures a continuous flame and reignites automatically if accidentally extinguished

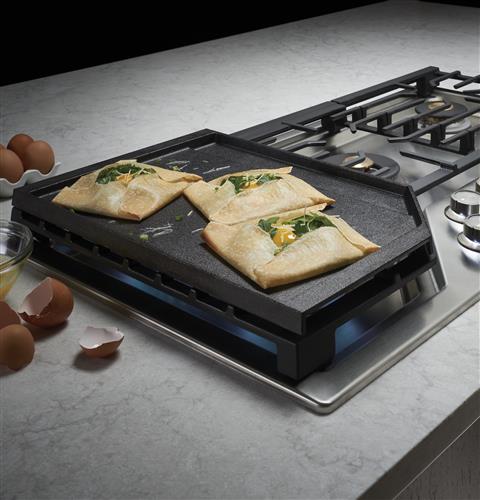

Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
| Weights & Dimensions | |
|---|---|
| Net Weight | 44.0 |
| Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
| Cabinet Width | 30.0 |
| Approximate Shipping Weight | 50.0 |
| Appearance | |
| Installation | Over Advantium Built-In 120V, Over Single Wall Oven (except Single-Double), Over Warming Drawer |
| Control Knobs | Stainless Steel, White LED Backlit |
| Color Appearance | Stainless Steel |
| Inputs & Outputs | |
| Valves (Degree of Turn) | 270 |
| Heating Technology | Natural Gas (factory set) |
| Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
| Cooktop Burner Grate Features | Continuous Grates |
| Burner Indicator Light | Yes - in Knob |
| Control Location | Front Center |
| Configuration | 5 Sealed Cooktop Burners |
| Dual Flame Stacked Burners | 5 |
| 140 Deg. Simmer Burner | 5 |
| Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
| Burner - Right Rear | 10,000 BTU Dual |
| Burner - Right Front | 12,000 BTU Dual |
| Burner - Left Rear | 10,000 BTU Dual |
| Burner - Left Front | 10,000 BTU Dual |
| Automatic Re-Ignition | Yes |
| Ignition System | Direct Electronic Ignition |
| Surface | Stainless Steel |
| Number of Burner | 5 Sealed |
| Weights & Dimensions | |
| Overall Depth | 21.0 |
| Overall Height | 3.25 |
| Overall Width | 30.0 |
| Power / Ratings | |
| Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
| Accessories | |
| Conversion Kit | Included - Nat. Gas to LP |
| Cooktop Cleaning | Included |
| Griddle | JXGRIDL230 (Included) |
| Warranty | |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
