24" Bosch 800 Series Top Control Built-In Dishwasher with Stainless Steel Tub - SHVM78Z53N

Category : Dishwashers

WAS $2,649.00
$2,299.00 CAD
Sale Ends 01-01-2025


Patented CrystalDry technology transforms moisture into heat to get dishes, including plastics, 60% drier.

  • PerfectDry based on Zeolith: perfect drying results with 3D Airflow even on plastic dishes.
  • 24h Delay Start Timer lets you run your dishwasher at off-peak times.
  • 42 dBA: Quietest Dishwasher Brand in the North America.
  • AquaStop leak protection works 24/7 to prevent water damage.

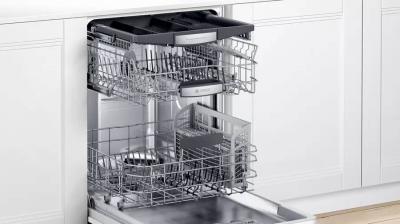

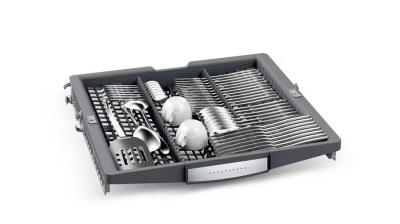

  • A flexible 3rd rack with fold down sides adds 30% more loading capacity.

The dishwasher that removes more than food.

The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.

Quality is in the details.

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.

RackMatic Adjustable Upper Rack

The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

When your dishes are done, so are you.

With Bosch PrecisionWash, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.

PerfectDry: for perfect drying results, even on plastic.

Many dishwashers can clean the dishes. But not all dishwashers can perfectly dry them. Especially dishes made of plastic, which often come out wet and have to be dried by hand. Our multi-award-winning Zeolith technology achieves brilliant drying results while using far less energy than conventional dishwashers. A natural mineral that transforms humidity into heat, Zeolith creates a drying process that requires far less energy than conventional dryers and perfectly dries glass, porcelain and even plastic dishes. Now you can put aside your dishtowels and focus more on the important things in life. Optimum drying results that are easy on your dishes, and your wallet too.

The quietest dishwasher brand in the U.S.

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2017.

Key Features

  • A flexible 3rd rack with fold down sides adds 30% more loading area.

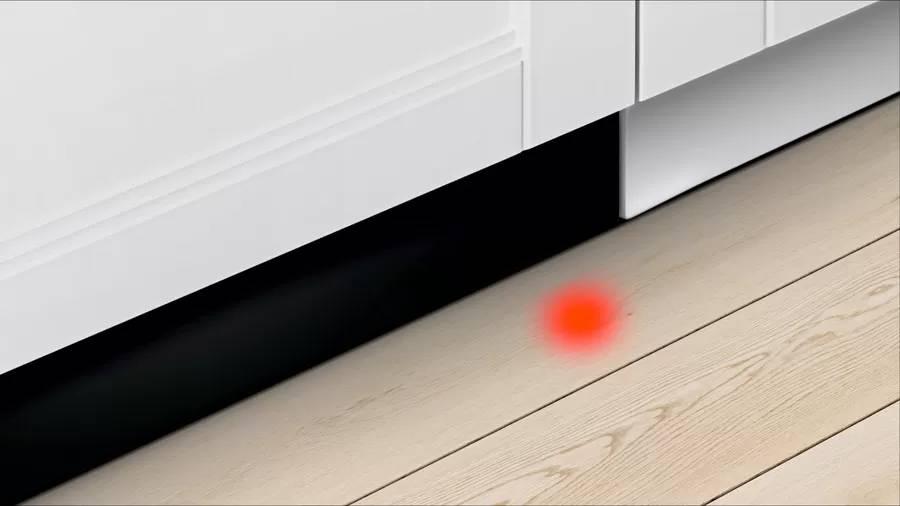

  • InfoLight Beams on Floor to Indicate Dishwasher is Running
  • FlexSpace Tines fold back to fit your larger pots & pans.
  • AquaStop Leak Protection Works 24/7


  • Full Size Stainless Steel Tall Tub Installs Perfectly Flush
  • 16 Place Setting Capacity
  • LED Remaining Time Display
  • RackMatic on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions


  • 6 Programs and 5 Options
  • Detergent Tray Optimizes Detergent Dissolving
  • Speed60 gets your dishes from dirty to dry in about an hour.
  • Extra Dry Option for Better Drying Results
  • Load Size Sensor Automates Wash Temperature
  • Sanitize Option Eliminates Bacteria and Enhances Drying Results


  • 269 kWh/yr - Energy Star


  • Electronic delay timer: 1-24 hours Delay Start Timer
  • Self-Latching Door
Width of the product (mm)598 mm
Height of the product (mm)860 mm
Installation TypeFull-integrated
Number of place settings16
List of programmesAuto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L
Cycle OptionsCrystal Protect, half load, HygienePlus, Zeo Dry
Silence level (dBA)42
3rd Rack3rd Rack 2.0
Interior lightNo
Removable topNo
Power cord length (cm)170 cm
Power cord length (in)67''
Construction type
Color / Control PanelBlack
Construction typeBuilt-in

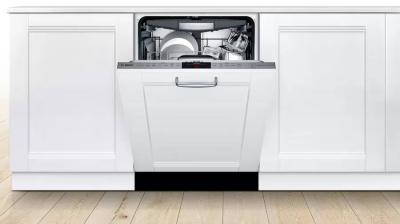

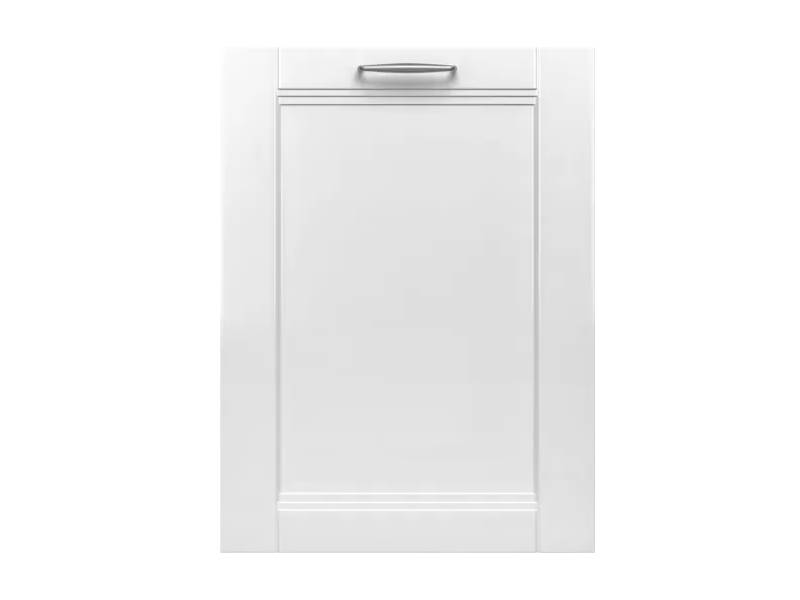

Panel readyPossible and included
Height of the product (mm)860 mm
Concealed heating elementYes
Installation TypeFull-integrated
Tub materialStainless steel
Water softenerNo
Width of the product (mm)598 mm
Size and Weight
Overall appliance dimensions (HxWxD) (in)33 7/8'' x 23 9/16'' x 23 1/16''
Adjustable plinthNo
Net weight (kg)44.044 kg
Net weight (lbs)97 lbs
Home ConnectNo
Connectivity typeNot applicable
Status indicatorEnd of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal
List of programmesAuto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L
Program 1Intensive
Program 2Auto
Program 4Economy
Program 6Pre Rinse
Programme duration, programme1 (min.)110-135
Programme duration, programme2 (min.)105-129
Programme duration, programme3 (min.)75-85
Programme duration, programme4 (min.)130-135
Programme duration, programme5 (min.)65
Programme duration, programme6 (min.)9
Reference programmeEco
Temperature, programme 1 (°C)66-71
Temperature, programme 2 (°C)53-60
Temperature, programme 3 (°C)45-50
Temperature, programme 4 (°C)45-58
Temperature, programme 5 (°C)50
Glass protectionNo
Surge-back protect. installedNo
Leak protection systemTotal system
Consumption values
Glass protectionNo
Water consumption, programme 1 (l)18.6-24.2
Water consumption, programme 2 (l)12.9-24.1
Water consumption, programme 3 (l)9-14.6
Water consumption, programme 4 (l)8.8-21
Water consumption, programme 5 (l)14.3
Water consumption, programme 6 (l)4.1
Maximum temperature for water intake (°C)60 °C
Watts (W)1,440 W
Power cord length (cm)170 cm
Power cord length (in)67''
Current (A)12 A
Plug typeNema5-15P
Consumption values
Glass protectionNo
Water consumption program 14.9-6.4 gal
Water consumption program 23.4-6.4 gal
Water consumption program 32.4-3.9 gal
Water consumption program 42.4-5.5 gal
Water consumption program 53.8 gal
Water consumption program 61.1 gal
Total annual water consumption (g)624 gallons
Maximum temperature for water intake (°C)60 °C
