36" Monogram Wall-Mount Slide-Out Hood - ZV800SJSS

Category : Ventilation
SKU : ZV800SJSS

$4,829.00 CAD

Literature

Under-cabinet or stand-alone installation

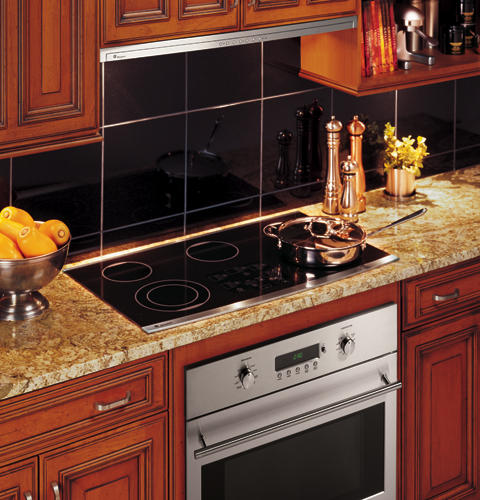

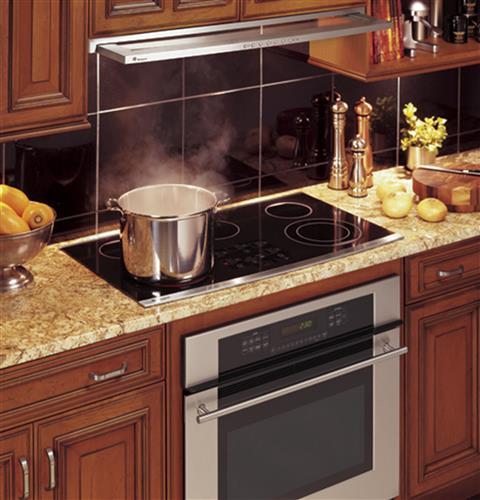

The chimney hood installs flush under a cabinet, above most cooktops and ranges. For a more contemporary look, the system can be wall-mounted with matching 8-to-10-foot duct cover

Low-profile design, high-impact style

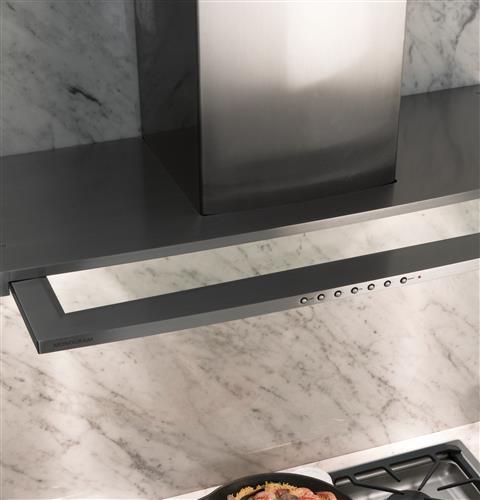

The retractable, glass canopy is sleekly styled with a streamlined design, seamlessly finished edges and front-mounted touch controls

Powerful ventilation
A four-speed, 460-CFM fan blower with boost option captures the smoke and steam produced by high-performance cooking equipment

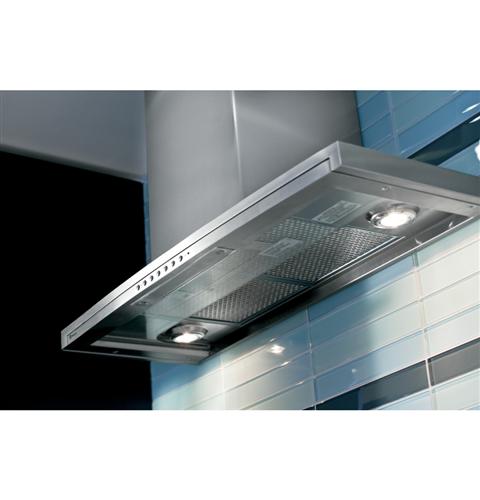

Multilevel halogen lighting
Six levels of intensity, from accent to ambient settings, allow you to choose the lighting to match the cooking task or occasion

Easy maintenance

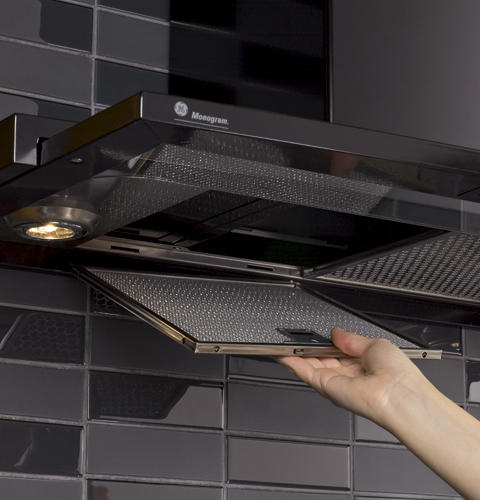

Stainless steel filters can be easily removed for safe cleaning in your dishwasher

Recirculating kit
Included for applications that do not allow outside venting

Weights & Dimensions
Overall Depth (hood retracted)13.6875
Overall Depth (hood extended)18.9375
Overall Depth13.6875
Net Weight60.0
Cabinet Width36.0
Approximate Shipping Weight81.0
Appearance
InstallationUnder Cabinet, Wall Mounted
Design StyleChimney
ColourStainless Steel
Inputs & Outputs
Indicator Lights"ON"
Welded / Finished SeamsYes
Vertical Exhaust-Round (Cubic Feet / Minute)460
Variable Speed FanYes
Stainless Steel Mesh FiltersYes
Recirculating CapableYes
Fan Speed Control4-Speed
Exhaust Options6" Round Duct
Damper in TransitionYes
Cooktop Lighting2, Halogen
Lighting Levels6
Control TypeElectronic, Pushbutton
Automatic Light/Fan ActivationYes
Weights & Dimensions
Overall Height1.5
Overall Width35.875
Accessories

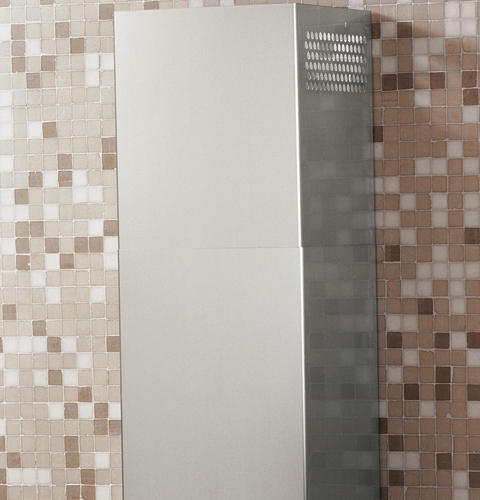

8'-10' Ceiling Duct CoverIncluded
Recirculating Charcoal Filter KitIncluded
Warranty
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
