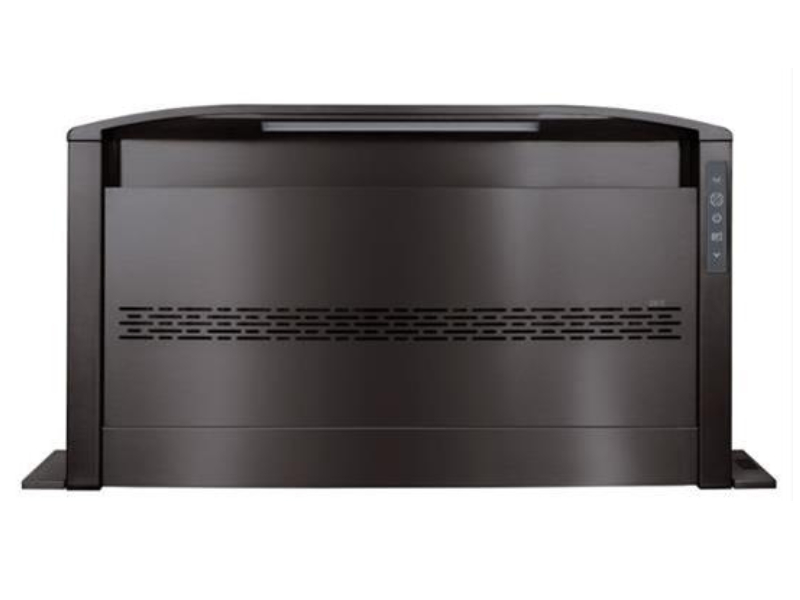

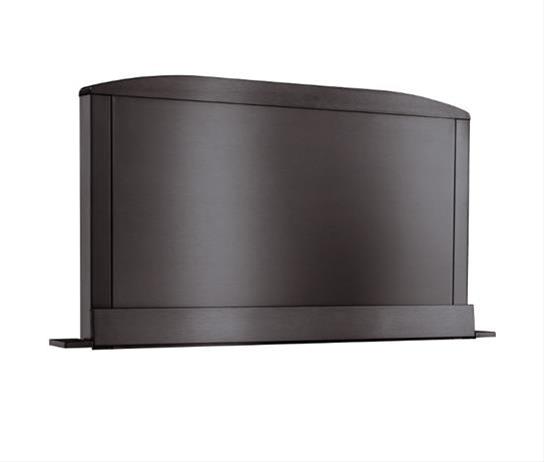

30" Best Cattura Downdraft Range Hood In Black Stainless Steel - D49M30BLS

Category : Ventilation
SKU : D49M30BLS

WAS $6,999.00
$2,999.00 CAD
Sale Ends 31-10-2024

Literature

Features

Designing a dream kitchen doesn’t have to include compromises. With Cattura, the groundbreaking new downdraft from BEST, you can design confidently, knowing it will pair with a broad range of cooktop appliances—aesthetically and mechanically—in virtually any installation configuration.

  • At the touch of a button the Cattura downdraft quickly rises to a height of 18" to handle serious cooking ventilation requirements and tall pots—even on the front burners
  • The integral, self-closing cap hides the lowered downdraft completely, leaving your counter unobstructed and clear
  • Realize design aspirations utilizing your favorite cooking appliances. For the first time, a downdraft can be installed with a free-standing range, gas or electric cooktop, rangetop, slide-in range or a built-in oven with a cooktop
  • With the use of VERTEX™ Complete Capture Design technology, Cattura provides up to 100% capture - equal to comparable island hoods
  • Up to 35% quieter operation than any other downdraft
  • Long-lasting two-level LED task lighting provides impressive cooktop illumination, even on the front burners
  • Four-speed glass touch control is easy to clean and includes convenient 10-minute time-delay shut-off feature and filter maintenance reminder light for a fresh kitchen
  • Heat Sentry™ detects excessive temperature and adjusts speed to high automatically to prevent the damaging effects from heat and increase the life of the product
  • Optional remote control raises or lowers downdraft from another location
  • Works with optional Automatic Make-Up Air Dampers
  • Available in Black Stainless Steel finish in 30" and 36" widths and in Stainless Steel in 30", 36" and 48" widths
  • New vertical installation outlet option provides the capability to duct directly out of the bottom of the unit. This now allows for applications with virtually zero impact on surrounding cabinets. This new outlet option adds to the ducting flexibility the Cattura™ offers; expanding the number of ducting outlets to 10.
Accessories
Fresh Air Inlet641FA, 643FA, 610FA
Automatic MUA DamperMD6T, MD8T, MD10T (Requires Fresh Air Inlet)
Black Stainless End Cap ExtensionATTD1BLS
Stainless End Cap ExtensionATTD1
Black Stainless Range Trim Kit (1/2'' depth) ATKDB30BLS, ATKDB36BLS
Stainless Range Trim Kit (1/2" depth) ATKD30SB, ATKD36SB, ATKD48SB
Charcoal FilterAFCD
Transition to 10" RoundAVDKD10
Transition to 8" RoundAVDKD8
SPECIFICATION RANGES
Non-ducted Capability Yes
Accessories
Non-ducted Recirculating KitANKD
SPECIFICATION RANGES
Filter TypeMesh Grease Filter
Remote ControlOptional ACRD, ACRDBLS
Control FeaturesHeat Sentry™, Delay Off, Filter Timer
Control Type4-speed Capacitive Glass
Inputs & Outputs
Lighting Lamps IncludedYes
Lighting Levels2
Lighting TypeLED, 7W (30"); 14W (36"); 18W (48") 3000K
Hood Sizes
Depth 2-1/4"
Width30"
Installation Requirements
Amps @ 120V: Internal Blower6.0 Max
Electrical ConnectionPlug In
Duct Size: Internal Blower8"
Duct Size: External Blower10" at hood
Duct DirectionFront, Left, Right, Rear or Down
Backdraft DamperNot Included
