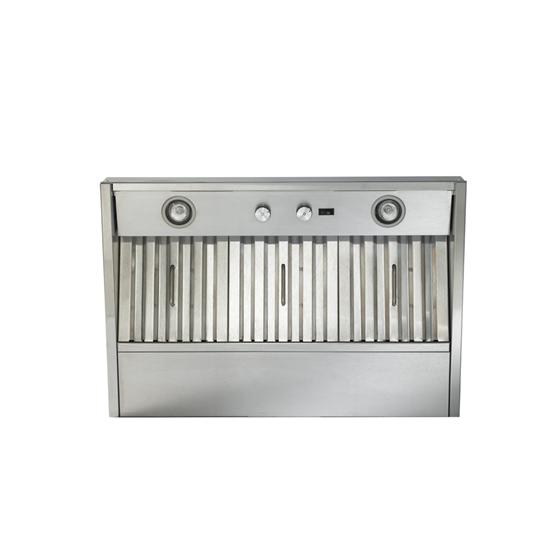

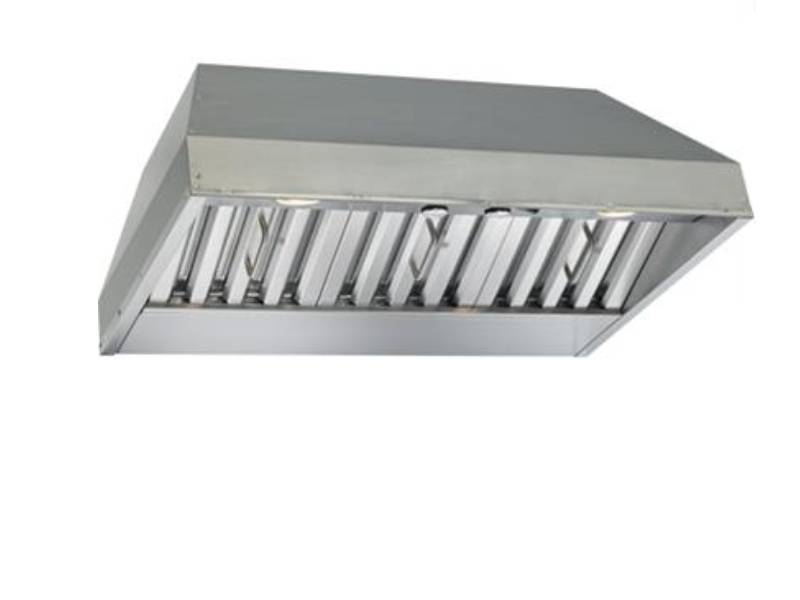

28" Best Built-In Range Hood with 290 CFM Internal Blower in Stainless Steel - CP34I309SB

Category : Ventilation
SKU : CP34I309SB

WAS $1,799.00
$1,299.00 CAD
Sale Ends 31-10-2024

Literature

Features

All-in-one design includes liner, blower, filtration, controls, lighting, and damper for easy installation into custom canopy hoods. Intended for all residential applications, including commercial-style cooking surfaces

  • Quiet, normal speed operation: 290 Max CFM Powerful, centrifugal blower with high-efficiency motor
  • Cabinet mount - custom applications
  • Finish: 430 Stainless Steel #4 Brushed
  • Width: 28-3/8”
  • Depth: 19-1/4”
  • 8” round duct connector with backdraft damper
  • Two-setting cooktop lighting (Uses two 50W, GU10 halogen lamps. Bulbs included.)
  • Easily accessible, dishwasher safe stainless steel baffle filters with handles
  • Infinite speed rotary blower control with on-off rocker switch
  • Heat Sentry™ - automatically turns blower to high speed when excess cooking heat is detected
Accessories
Fresh Air Inlet 641FA, 643FA, 610FA
Universal MUA Damper MD6TU, MD8TU, MD10TU
CFM Reducer Kit ARP8 (use with CP35 only)
SPECIFICATION RANGES
Non-ducted Capability No
Filter Type Stainless Steel Baffle Filter
Control Features Heat Sentry
Control TypeInfinite Speed Rotary with Separate On/Off Control
Lighting Lamps Included Yes
Lighting Levels 2
Number of Lamps 2
Lighting Type Halogen, GU10, MR16, 50-watt
ColourBrushed Stainless Steel (Grade 430)
Installation Requirements
Amps @ 120V 9.0 Max
Electrical Connection Direct Wire
Duct Size: Internal Blower CP34 & CP35: 8", CP37: 10"
Duct Direction Vertical
Backdraft Damper Included
