Highlights
- CookSmart with 4 preset frying levels, a sensor controls the temperature of the pan, taking the guesswork out of temperature selection
- Dual zone bridge element accomodates oblong cookware and multiple diameter sizes
- Triple zone center element allows you to match element size to various sized cookware
- Illuminated touch control panel offers intuitively simple selection of power levels and allows for easy cleaning
Innovation
- Cooksmart feature - 4 preset frying levels controlled by a sensor
Performance
- Four elements and eight cooking zones provides the space and power for most cookware
- Dual zone bridge element connects front and rear elements to accomodates oblong cookware and multiple diameter sizes
- Large triple element offers the capability to use multiple pan sizes
- Residual heat indicator shows you what elements are still hot
- Wipe protection function allows user to clean the surface of the control panel without risk of changing the settings
Design

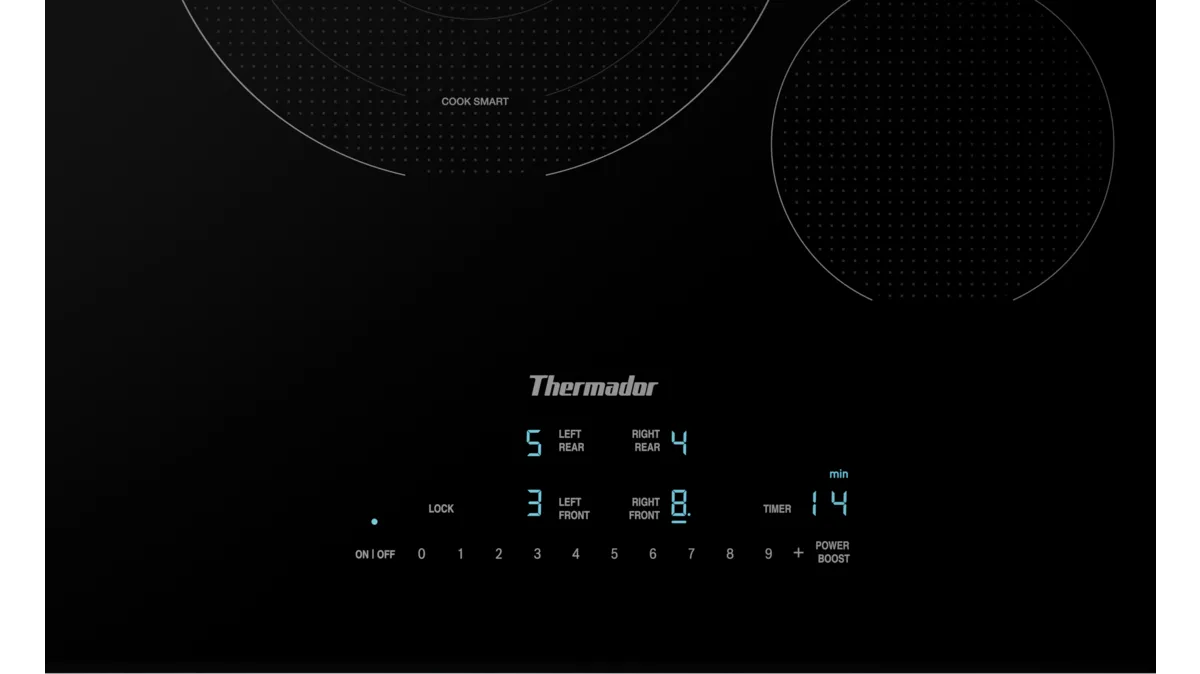

- Touch control panel with blue light illumination offers 17 power settings

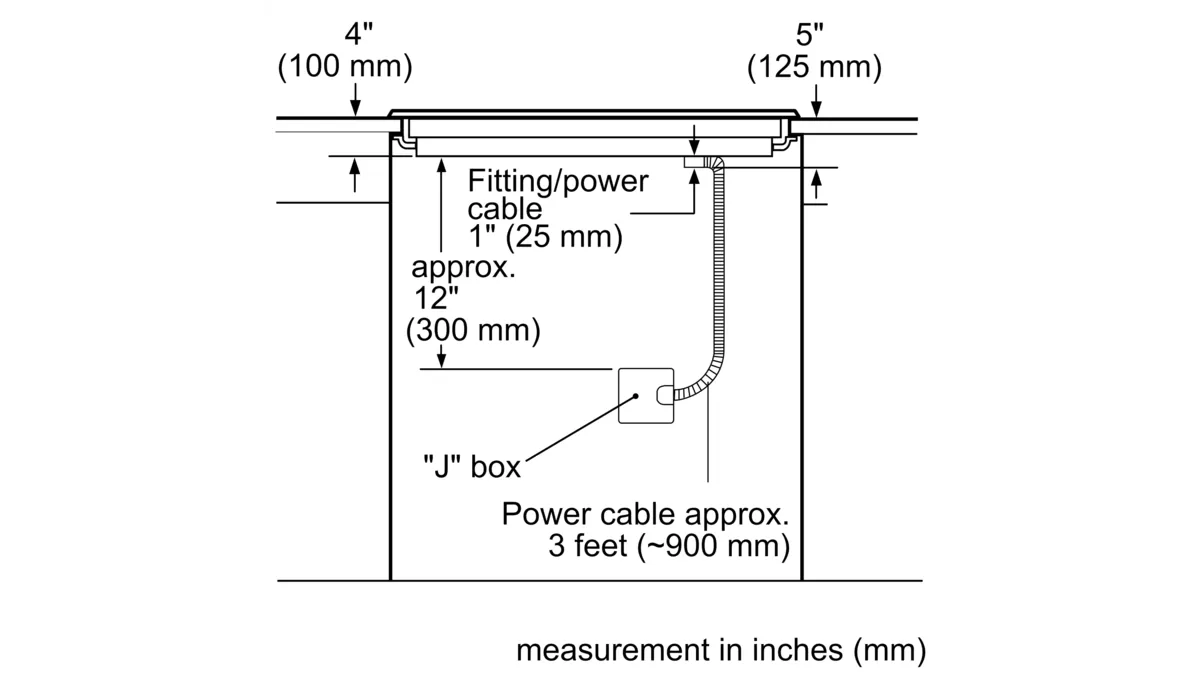

| Size and Weight | |
|---|---|
| Maximum height for installation | 508 mm |
| Minimum width for installation | 731 mm |
| Maximum width for installation | 734 mm |
| Depth for installation | 100 mm |
| Appliance height above the worktop | 6.0 mm |
| Cooking zone 1 | |
| Dimension of heating element | 180 mm |
| Location of 1st heating element | front left |
| Power of heating element (W) | 1.7 kW |
| Type of heating element | Radiant heating |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Dimension of 3rd heating element | 120 ; 180 mm |
| Power of 3rd heating element (W) | 0.7 ; 1.7 kW |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Radiant heating |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| General | |
| Colour | Black |
| Frame type | Facet |
| Basic surface material | Ceramic |
| Included accessories | 1 x glass scraper |
| Cooking zone 7 | |
| Type of 7th heating element | Radiant heating |
| Power of 7th heating element (kW) | 1.2 kW |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | Separate |
| Safety device | childproof lock, Key Lock, Safety time-switch-off |
| Connection | |
| Power cord length | 96 cm |
| Heating Technology | Electric |
| Frequency | 60 Hz |
| Accessories | |
| Included accessories | 1 x glass scraper |
| Cooking zone 5 | |
| Type of 5th heating element | Radiant heating |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Dimension of 7th heating element | 140 mm |
| Construction type | |
| Number of electric warming zones | 0 |
| Number of gas burners | 0 |
| Number of halogen elements | 0 |
| Number of electric elements | 0 |
| Color of surface | Black |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Size and Weight | |
| Minimum height for installation | 505 mm |
| Dimensions | 100 x 788 x 540 mm |
| Construction type | |
| Number of radiant elements | 4 |
| Number of Burner | 4 |
| Installation Type | Built-in |
| Type of frame | 4 Facettes |
| Number of electric cooking zones | 4 |
| Installation type | Built-in |
| General | |
| Power of the heating elements | 1 x 1.2 KW, 1 x 3.08 KW, 2 x 1.7 KW |
| Dimensions of the heating elements | 1 x 14,0 cm Ø, 1 x 27,0 cm Ø, 2 x 18,0 cm Ø |
| Number of Burner | 4 |
| Type of appliance width | 75 cm |
| Self-sufficient cooker control | Self-sufficient electro hobs |
| Cooktop type | Radiant cooktop |
