Stainless steel design
Creates a striking architectural impression with bold angles and smoothly finished edges
Powerful ventilation
Offers three speeds plus a 420 CFM boost to capture cooking fumes produced by 30" cooktops
Perimeter filter system
Draws fumes and vapors around a stainless steel center panel, which completely and stylishly conceals filters

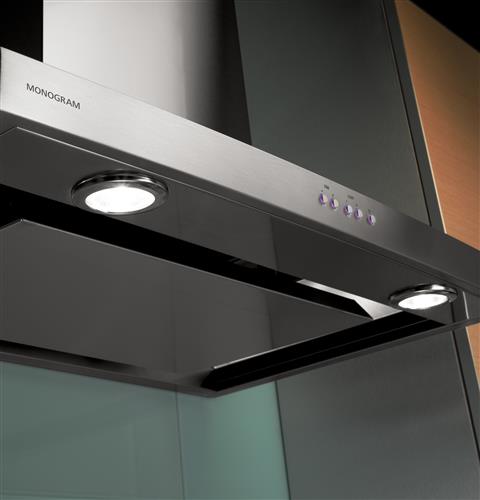

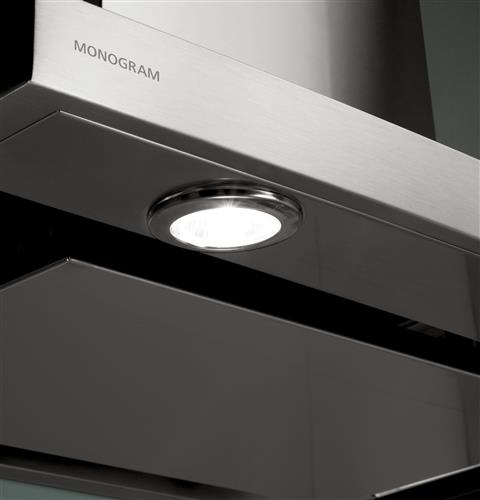

Halogen lighting
Provides four levels of clean, brilliant illumination to suit the cooking task or occasion
Recirculating-ready design
Includes reversible duct covers for non-vented installations, eliminating the need for an optional kit
| Weights & Dimensions | |
|---|---|
| Overall Height | 5.875 |
| Overall Depth | 18.875 |
| Net Weight | 60.0 |
| Cabinet Width | 30.0 |
| Approximate Shipping Weight | 75.0 |
| Appearance | |
| Exterior Design | Chimney - Wall-Mount |
| Design Style | Chimney |
| Colour | Stainless Steel |
| Inputs & Outputs | |
| Welded / Finished Seams | Yes |
| Vertical Exhaust Blower Rating (CFM) | 420 |
| Variable Speed Fan | Yes |
| Removable Filter | Yes |
| Recirculating Capable | Yes |
| Lighting Levels | 4 |
| Exhaust Options | 8" Round Duct |
| Dual Blowers | Yes |
| Damper in Transition | Yes |
| Cooktop Lighting | 2, Halogen |
| Control Type | Electronic, Pushbutton |
| Blower Levels | 4 |
| Weights & Dimensions | |
| Overall Width | 29.875 |
| Power / Ratings | |
| Amp Rating at 120V | 12.0 |
| Accessories | |
| 8'-10' Ceiling Duct Cover | Included |
| Optional 12' Ceiling Extension | ZX83012 |
| Warranty | |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
